How to identify which handle and mortise goes with this

by Jorge C
(San Juan, PR)

Prime Line E2014 / E2013 mortise lock

Prime Line E2014 / E2013 mortise lock

Regards.

I need to fix this mix 1970's sliding door that is missing the handles.

Id like to be able to idetify the mortise latch and ehchi handles can I install.

I ask because the mortise seems to be round at the top and square at the bottom.

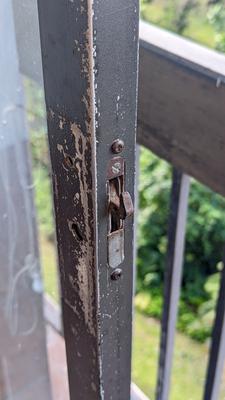

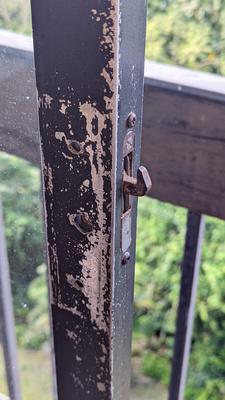

Attached are 2 picture.


Thanks

Comments for How to identify which handle and mortise goes with this

Average Rating starstarstarstarstar

Click here to add your own comments

Oct 05, 2022
Rating
starstarstarstarstar
by: Adrian

This is a Prime Line E2013 or E2014 lock. The E2014 has a slot for the lock opening lever that is 45 degrees to the vertical
Link below to Amazon:

https://amzn.to/3SFvFGe

In the E2013 model the slot is simply vertical. I cannot tell from the picture which one you have without the lock being removed.

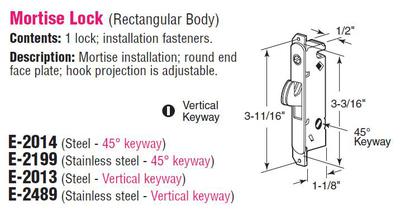

I posted pictures of the lock model numbers available all of which will fit this door.

The stainless steel models are used in coastal areas where the salty sea air rusts regular steel locks away.

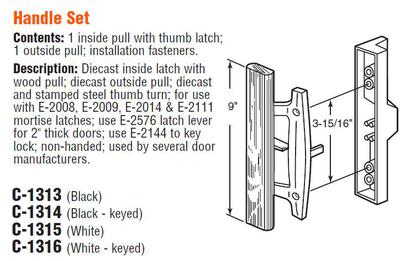

I also posted a picture of one handle set which will fit this door and match the colour. But this is only one of many handles which you could use.
Link Below to Amazon:

https://amzn.to/3CwL9GW

The E2013/E2014 locks have not changed since the 1960's and they are easy to get. Dozens of handles that fit them as well.
